4 x 6 Full Dovetail Jig

Name: 4 x 6 Full Dovetail Jig
SKU: 1383
Price: 1325.00 USD
Availability: InStock

Original price was: $1,475.00.Current price is: $1,325.00.

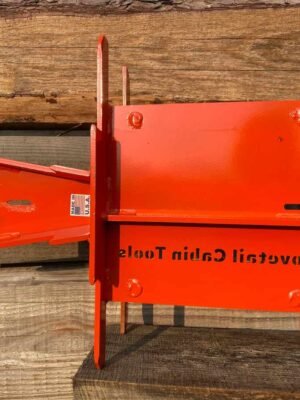

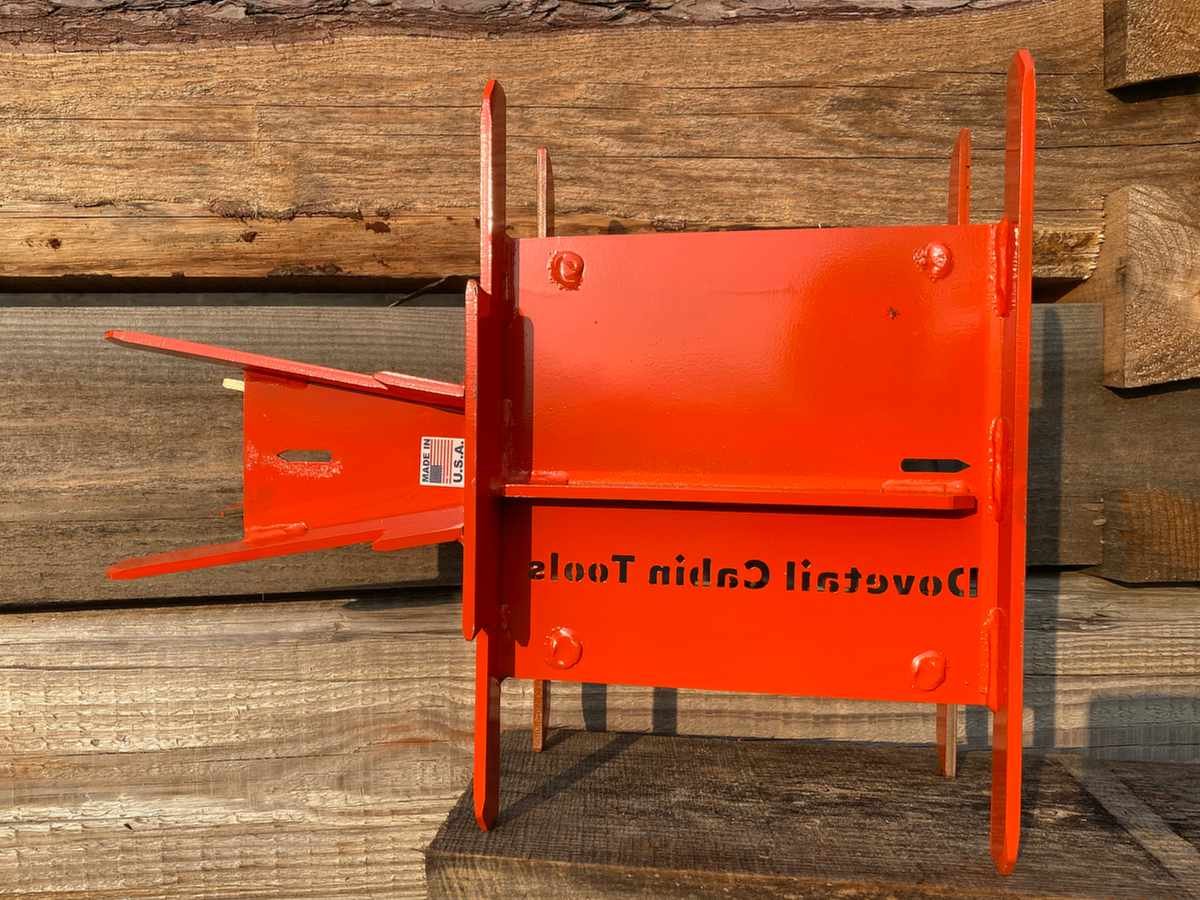

Oops… the “Dovetail Cabin Tools” side of this jig is backwards, otherwise it’s fully functional!

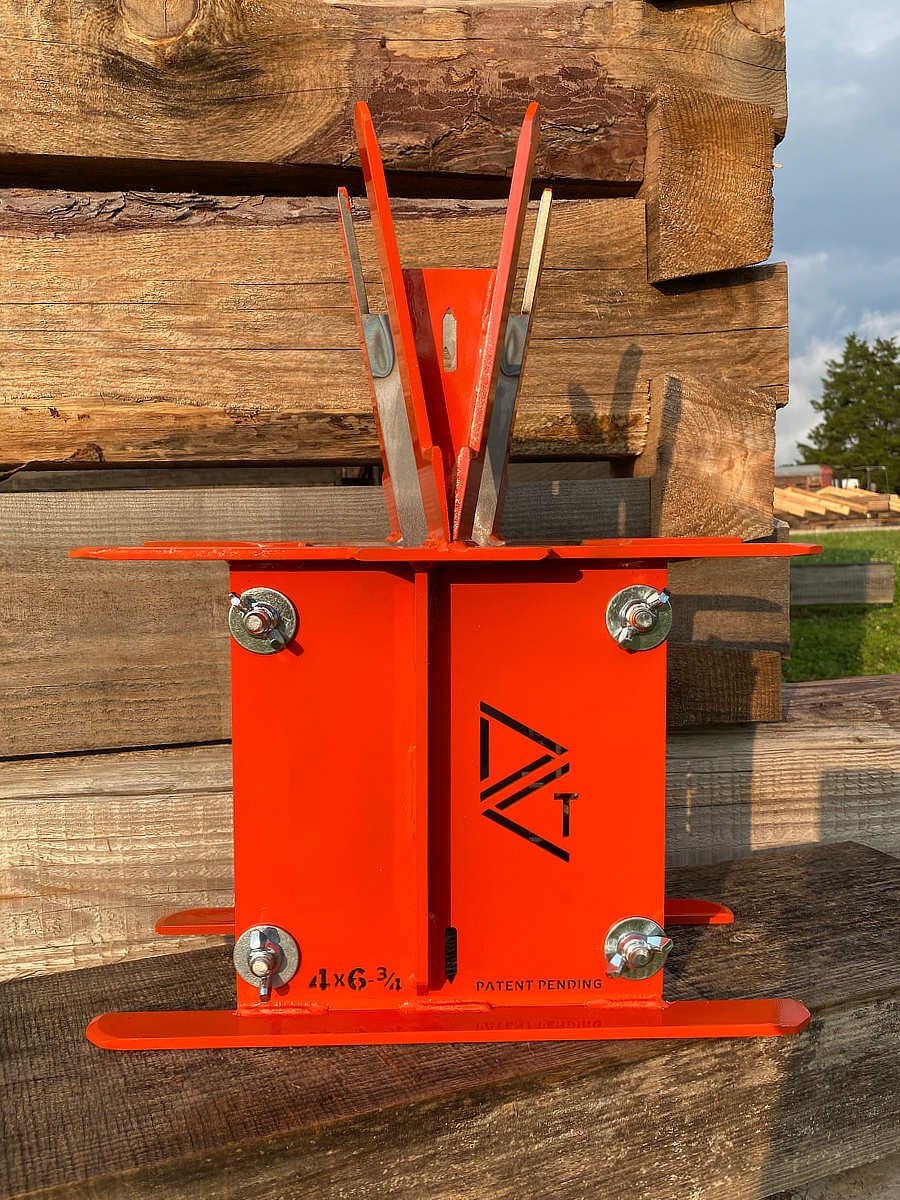

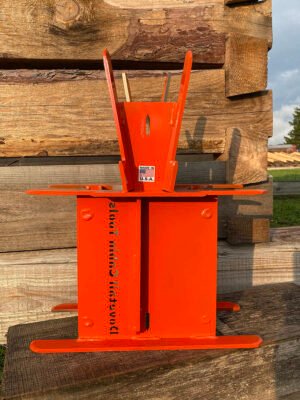

The Dovetail Cabin Tools 4 x 6 Dovetail Jig is designed for a full dimension 4″ x 6″ timber and a 3/4″ chink gap. This jig clamps on the end of the log and guides the chainsaw perfectly for a series of cuts to make a flawless dovetail. The jig utilizes wing nuts for fast and easy clamping on each log.

Each jig is made to accommodate a variance of +/- 1/4″ in the log.

Jig Comes with one set of bar guides.

Category: Full Dovetail Jigs

FEATURES:

This cute little critter is still made from heavy-duty steel. Used as intended and stored appropriately, this jig will last more than a lifetime.

Inner rails ensure accurate placement on the log. View holes increase versatility to use dimensional logs with rounded shoulders.

Dual-purpose: the bottom side is used to first make a perfectly straight end-cut, the jig is then refastened to the log to cut each side of the dovetail joint with the top guides.
